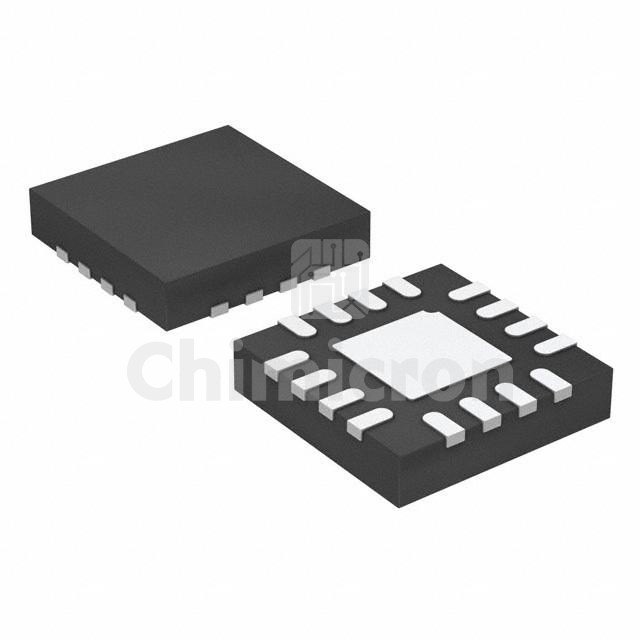

TPS2546QRTERQ1
Manufacturer: Texas
Description: IC PWR SWITCH N-CHAN 1:1 16WQFN
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: Automotive, AEC-Q100
In Stock:12600
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS2546QRTERQ1 Texas at chimicron.com. We have 12600 pieces of TPS2546QRTERQ1 in stock available now. Submit an inquiry for TPS2546QRTERQ1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusNot For New Designs
Switch TypeUSB Switch
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load4.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd)-
Current - Output (Max)2.5A
Rds On (Typ)73mOhm
Input TypeNon-Inverting
FeaturesLoad Discharge
Fault ProtectionCurrent Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package16-WQFN (3x3)
Package / Case16-WFQFN Exposed Pad
