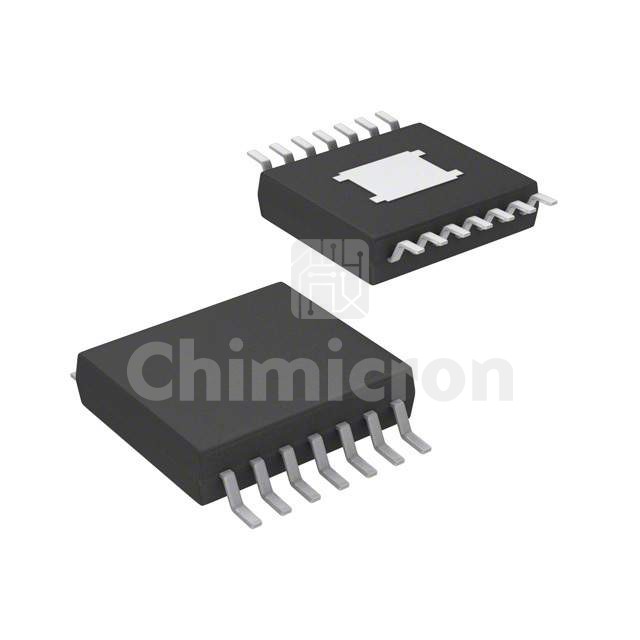

TPS27S100APWPR
Manufacturer: Texas
Description: IC PWR DRVR N-CHAN 1:1 14HTSSOP
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: Automotive, AEC-Q100
In Stock:12600
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS27S100APWPR Texas at chimicron.com. We have 12600 pieces of TPS27S100APWPR in stock available now. Submit an inquiry for TPS27S100APWPR or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch TypeRelay, Solenoid Driver
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceLogic
Voltage - Load40V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)13A
Rds On (Typ)80mOhm
Input TypeNon-Inverting
FeaturesShutdown
Fault ProtectionOver Load, Over Temperature, Short Circuit, UVLO
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device Package14-HTSSOP
Package / Case14-PowerTSSOP (0.173", 4.40mm Width)
