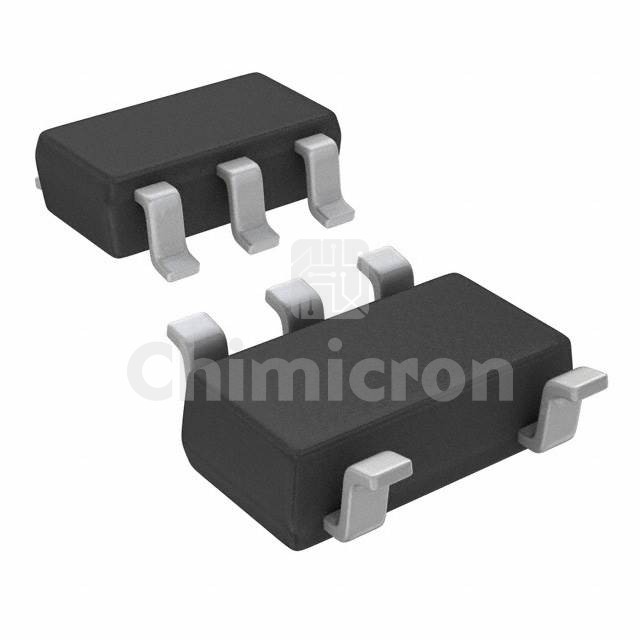

FPF2109
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: IC PWR SWITCH P-CHAN 1:1 SOT23-5
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: IntelliMAX™
In Stock:2609
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FPF2109 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 2609 pieces of FPF2109 in stock available now. Submit an inquiry for FPF2109 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesIntelliMAX™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch TypeGeneral Purpose
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeP-Channel
InterfaceOn/Off
Voltage - Load1.8V ~ 5.5V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)200mA
Rds On (Typ)125mOhm
Input TypeNon-Inverting
FeaturesStatus Flag
Fault ProtectionCurrent Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Supplier Device PackageSOT-23-5
Package / CaseSC-74A, SOT-753
