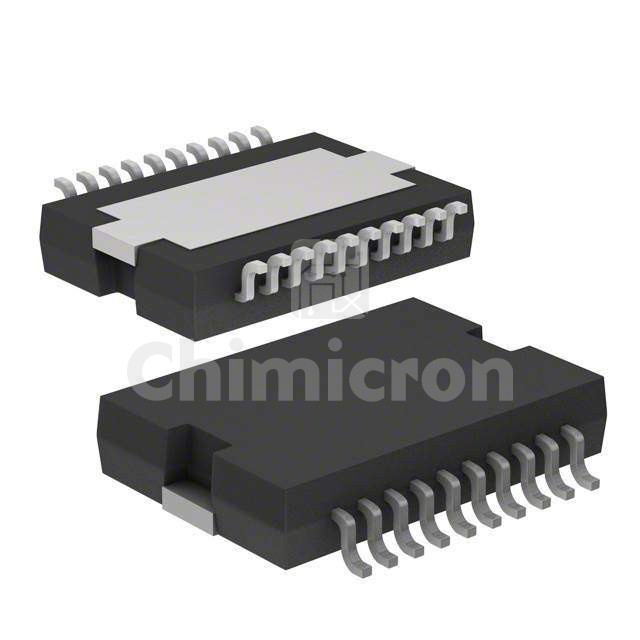

L9825
Manufacturer: STMicroelectronics
Description: IC PWR DRIVER N-CHAN 1:8 PWRSO20
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: -
In Stock:120000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the L9825 STMicroelectronics at chimicron.com. We have 120000 pieces of L9825 in stock available now. Submit an inquiry for L9825 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch TypeLatched Driver
Number of Outputs8
Ratio - Input:Output1:8
Output ConfigurationLow Side
Output TypeN-Channel
InterfaceSPI
Voltage - Load45V (Max)
Voltage - Supply (Vcc/Vdd)4.5V ~ 5.5V
Current - Output (Max)1A
Rds On (Typ)750mOhm (Max)
Input Type-
FeaturesStatus Flag
Fault ProtectionCurrent Limiting (Fixed), Over Temperature
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerSO-20
Package / Case20-SOIC (0.433", 11.00mm Width) Exposed Pad
