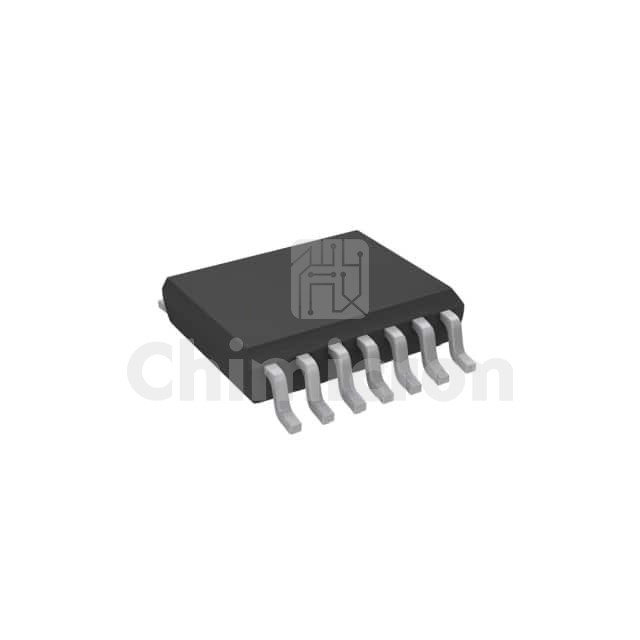

BTS70101EPAXUMA1
Manufacturer: IR (Infineon Technologies)
Description: PROFET
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: Automotive, AEC-Q100, PROFET®
In Stock:4400
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BTS70101EPAXUMA1 IR (Infineon Technologies) at chimicron.com. We have 4400 pieces of BTS70101EPAXUMA1 in stock available now. Submit an inquiry for BTS70101EPAXUMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100, PROFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch TypeGeneral Purpose
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load3.1V ~ 28V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)9A
Rds On (Typ)9.5mOhm
Input TypeNon-Inverting
FeaturesSlew Rate Controlled
Fault ProtectionCurrent Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
Operating Temperature-40°C ~ 150°C (TJ)
Mounting Type-
Supplier Device PackagePG-TSDSO-14-22
Package / Case14-TSSOP (0.154", 3.90mm Width) Exposed Pad
