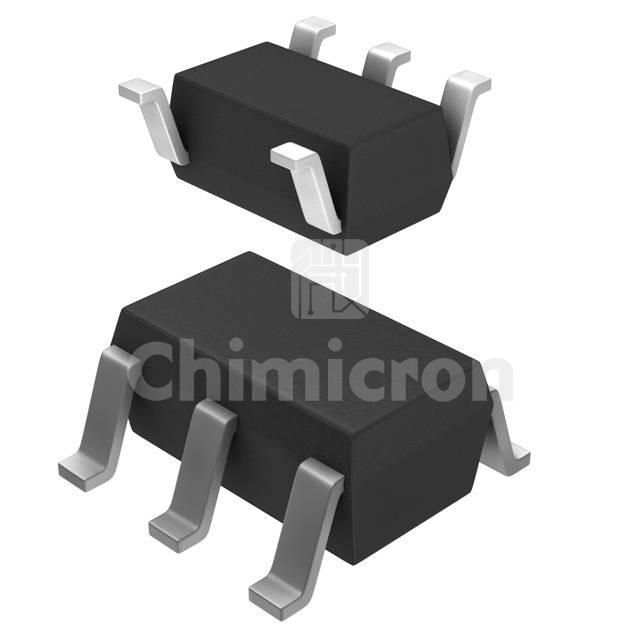

AP2822CKTR-G1
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: IC PWR SWITCH N-CHAN 1:1 SOT23-5
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: -
In Stock:66150
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AP2822CKTR-G1 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 66150 pieces of AP2822CKTR-G1 in stock available now. Submit an inquiry for AP2822CKTR-G1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusNot For New Designs
Switch TypeUSB Switch
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load2.7V ~ 5.5V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)1A
Rds On (Typ)85mOhm
Input TypeNon-Inverting
FeaturesStatus Flag
Fault ProtectionCurrent Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Supplier Device PackageSOT-23-5
Package / CaseSC-74A, SOT-753
Related Parts for AP2822CKTR-G1
Roving Networks / Microchip Technology
MIC2005-0.5YM6-TRIC PWR SWITCH P-CHAN 1:1 SOT23-6
In Stock: 22193
