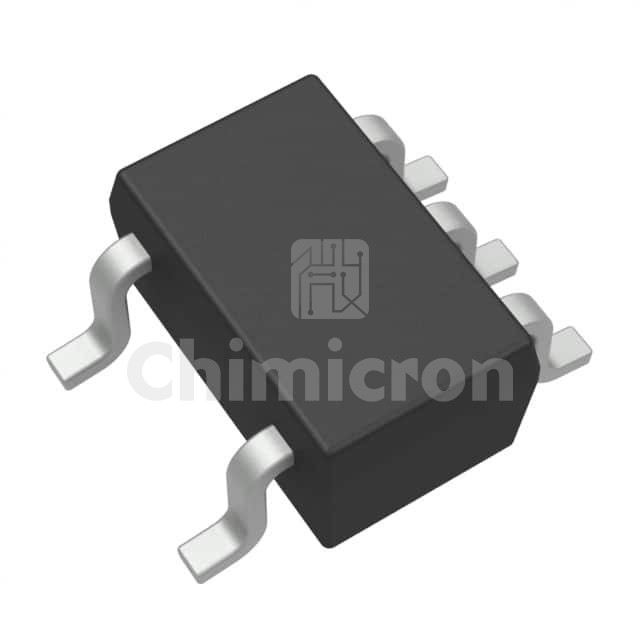

TPS22942DCKR
Manufacturer: Texas
Description: IC PWR SWITCH P-CHAN 1:1 SC70-5
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: -
In Stock:315000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS22942DCKR Texas at chimicron.com. We have 315000 pieces of TPS22942DCKR in stock available now. Submit an inquiry for TPS22942DCKR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch TypeGeneral Purpose
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeP-Channel
InterfaceOn/Off
Voltage - Load1.62V ~ 5.5V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)100mA
Rds On (Typ)400mOhm
Input TypeNon-Inverting
FeaturesAuto Restart
Fault ProtectionCurrent Limiting (Fixed), Over Temperature, UVLO
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-70-5
Package / Case5-TSSOP, SC-70-5, SOT-353
