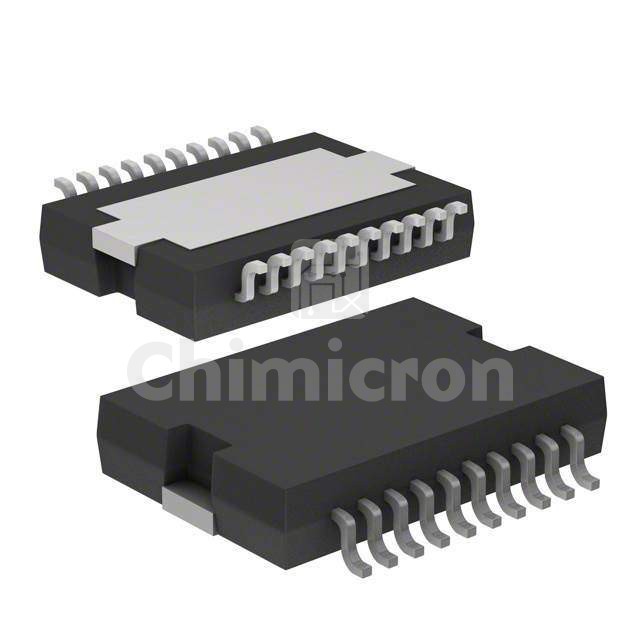

L9825TR
Manufacturer: STMicroelectronics
Description: IC PWR DRIVER N-CHAN 1:8 PWRSO20
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: -
In Stock:21347
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the L9825TR STMicroelectronics at chimicron.com. We have 21347 pieces of L9825TR in stock available now. Submit an inquiry for L9825TR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch TypeLatched Driver
Number of Outputs8
Ratio - Input:Output1:8
Output ConfigurationLow Side
Output TypeN-Channel
InterfaceSPI
Voltage - Load45V (Max)
Voltage - Supply (Vcc/Vdd)4.5V ~ 5.5V
Current - Output (Max)1A
Rds On (Typ)750mOhm (Max)
Input Type-
FeaturesStatus Flag
Fault ProtectionCurrent Limiting (Fixed), Over Temperature
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerSO-20
Package / Case20-SOIC (0.433", 11.00mm Width) Exposed Pad
