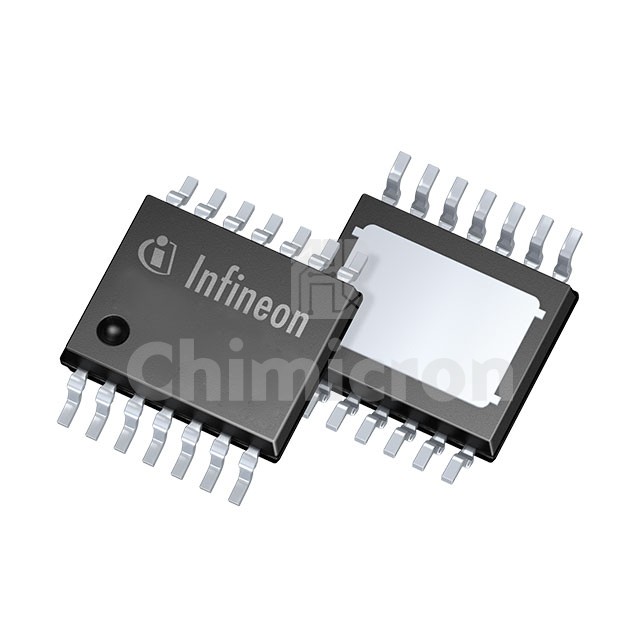

BTS70802EPAXUMA1
Manufacturer: IR (Infineon Technologies)
Description: IC PWR SWTCH N-CHAN 1:1 TSDSO-14
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: Automotive, AEC-Q100, PROFET®
In Stock:36000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BTS70802EPAXUMA1 IR (Infineon Technologies) at chimicron.com. We have 36000 pieces of BTS70802EPAXUMA1 in stock available now. Submit an inquiry for BTS70802EPAXUMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100, PROFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch TypeGeneral Purpose
Number of Outputs2
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load3.1V ~ 28V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)3A
Rds On (Typ)23.1mOhm
Input TypeNon-Inverting
FeaturesSlew Rate Controlled
Fault ProtectionCurrent Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TSDSO-14-22
Package / Case14-TSSOP (0.154", 3.90mm Width) Exposed Pad
