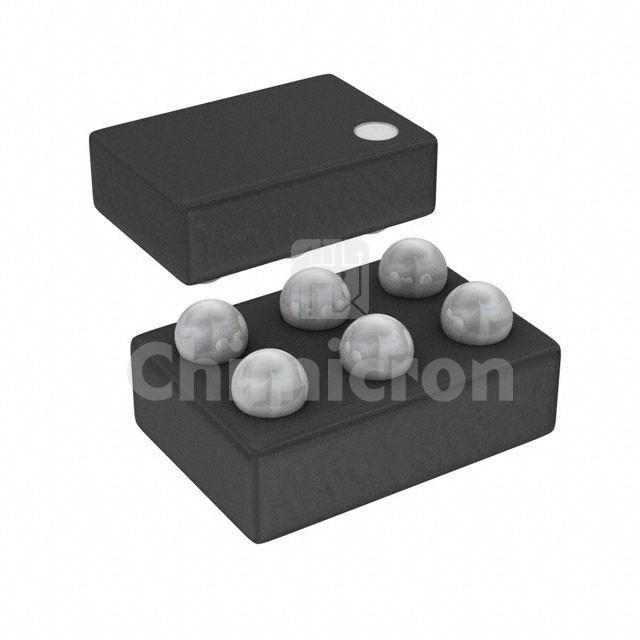

ADP196ACBZ-01-R7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC PWR SWITCH N-CHAN 1:1 6WLCSP
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: -
In Stock:2100
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADP196ACBZ-01-R7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 2100 pieces of ADP196ACBZ-01-R7 in stock available now. Submit an inquiry for ADP196ACBZ-01-R7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch TypeGeneral Purpose
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load1.8V ~ 5.5V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)3A
Rds On (Typ)10mOhm
Input TypeNon-Inverting
FeaturesLoad Discharge, Slew Rate Controlled
Fault ProtectionCurrent Limiting (Fixed), Over Temperature
Operating Temperature-40°C ~ 105°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-WLCSP (1.45x0.95)
Package / Case6-WFBGA, WLCSP
