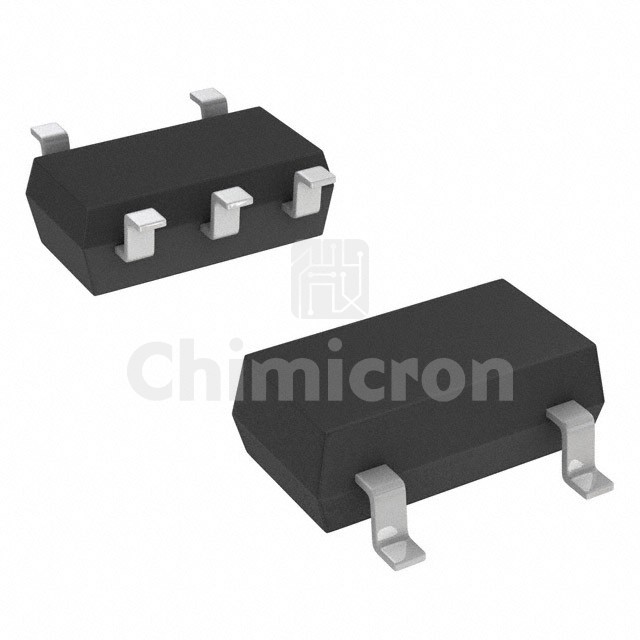

RT9742EGJ5
Manufacturer: Richtek
Description: IC PWR SWTCH N-CHAN 1:1 TSOT23-5
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: -
In Stock:600000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the RT9742EGJ5 Richtek at chimicron.com. We have 600000 pieces of RT9742EGJ5 in stock available now. Submit an inquiry for RT9742EGJ5 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch TypeUSB Switch
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load2.7V ~ 6V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)1.5A
Rds On (Typ)70mOhm
Input TypeNon-Inverting
FeaturesLoad Discharge, Status Flag
Fault ProtectionCurrent Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Supplier Device PackageTSOT-23-5
Package / CaseSOT-23-5 Thin, TSOT-23-5
