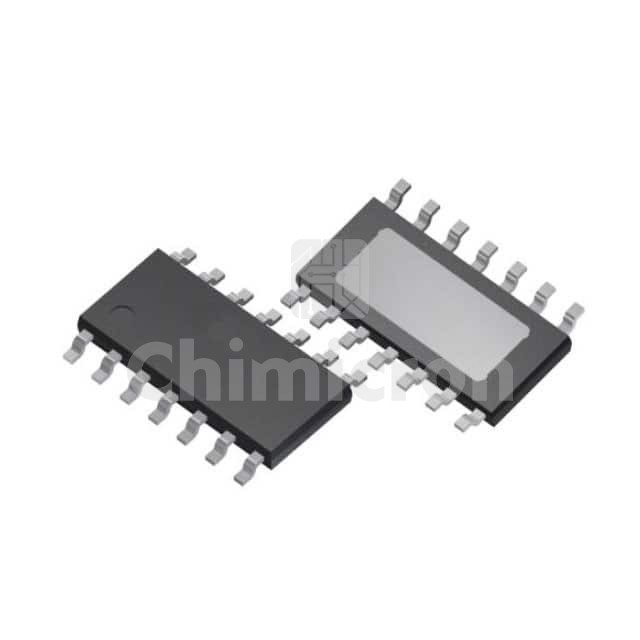

BTT60302ERAXUMA1
Manufacturer: IR (Infineon Technologies)
Description: IC PWR SWITCH N-CHAN 1:1 TDSO-14
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: Automotive, AEC-Q100, PROFET®
In Stock:15
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BTT60302ERAXUMA1 IR (Infineon Technologies) at chimicron.com. We have 15 pieces of BTT60302ERAXUMA1 in stock available now. Submit an inquiry for BTT60302ERAXUMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100, PROFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch TypeGeneral Purpose
Number of Outputs2
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load5V ~ 36V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)4A
Rds On (Typ)32mOhm
Input TypeNon-Inverting
Features-
Fault ProtectionCurrent Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TDSO-14-31
Package / Case14-SOIC (0.154", 3.90mm Width) Exposed Pad
