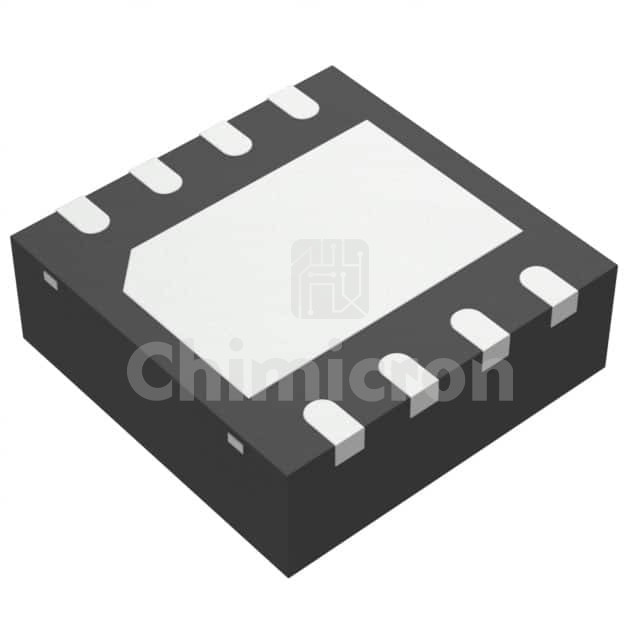

TPS2556DRBT
Manufacturer: Texas
Description: IC PWR SWITCH N-CHAN 1:1 8SON
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: -
In Stock:300000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS2556DRBT Texas at chimicron.com. We have 300000 pieces of TPS2556DRBT in stock available now. Submit an inquiry for TPS2556DRBT or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch TypeGeneral Purpose
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load2.5V ~ 6.5V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)5A
Rds On (Typ)22mOhm
Input TypeNon-Inverting
FeaturesSlew Rate Controlled, Status Flag
Fault ProtectionCurrent Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-SON (3x3)
Package / Case8-VDFN Exposed Pad
