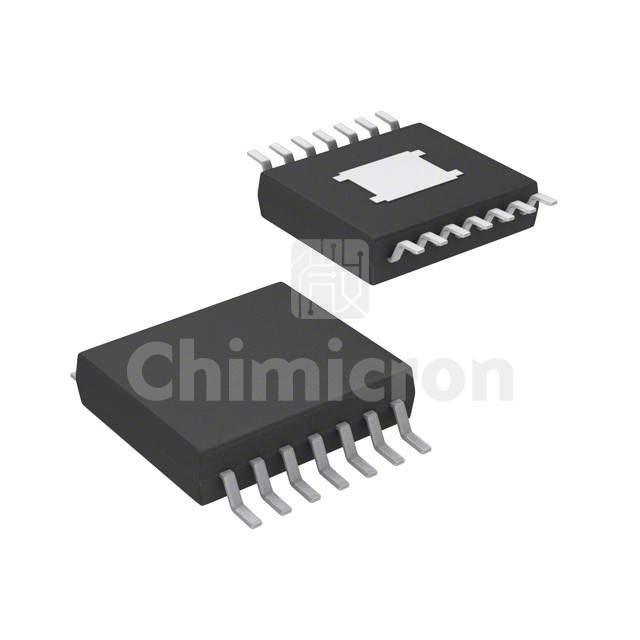

TPS1H100BQPWPRQ1
Manufacturer: Texas
Description: IC PWR SWTCH N-CHAN 1:1 14HTSSOP
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: Automotive, AEC-Q100
In Stock:21000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS1H100BQPWPRQ1 Texas at chimicron.com. We have 21000 pieces of TPS1H100BQPWPRQ1 in stock available now. Submit an inquiry for TPS1H100BQPWPRQ1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch TypeGeneral Purpose
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load5V ~ 40V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)4A
Rds On (Typ)80mOhm
Input TypeNon-Inverting
FeaturesStatus Flag
Fault ProtectionCurrent Limiting (Adjustable), Open Load Detect, Over Temperature, UVLO
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device Package14-HTSSOP
Package / Case14-PowerTSSOP (0.173", 4.40mm Width)
