NCP45520IMNTWG-L
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: IC PWR SWITCH N-CHAN 1:1 8DFN
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: ecoSWITCH™
In Stock:1042000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NCP45520IMNTWG-L Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 1042000 pieces of NCP45520IMNTWG-L in stock available now. Submit an inquiry for NCP45520IMNTWG-L or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesecoSWITCH™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch TypeGeneral Purpose
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load0.5V ~ 13.5V
Voltage - Supply (Vcc/Vdd)3V ~ 5.5V
Current - Output (Max)10.5A
Rds On (Typ)12.8mOhm
Input TypeNon-Inverting
FeaturesSlew Rate Controlled
Fault ProtectionOver Temperature, UVLO
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount

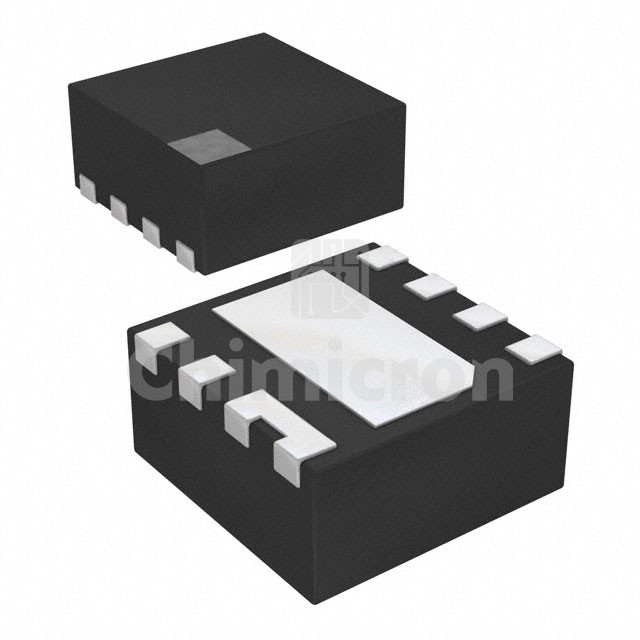

Supplier Device Package8-DFN (2x2)
Package / Case8-VFDFN Exposed Pad
