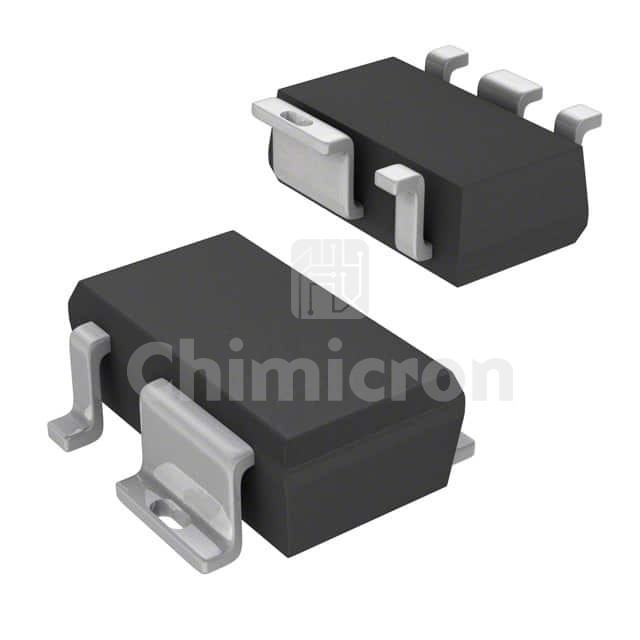

BTS3800SLHTSA1
Manufacturer: IR (Infineon Technologies)
Description: IC PWR SWITCH N-CHAN 1:1 SCT595
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: HITFET®
In Stock:14170
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BTS3800SLHTSA1 IR (Infineon Technologies) at chimicron.com. We have 14170 pieces of BTS3800SLHTSA1 in stock available now. Submit an inquiry for BTS3800SLHTSA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHITFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch TypeGeneral Purpose
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationLow Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load2.7V ~ 5.5V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)350mA
Rds On (Typ)800mOhm
Input TypeNon-Inverting
Features-
Fault ProtectionOver Temperature, Over Voltage
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-SCT-595
Package / Case6-SMD (5 Leads), Gull Wing
