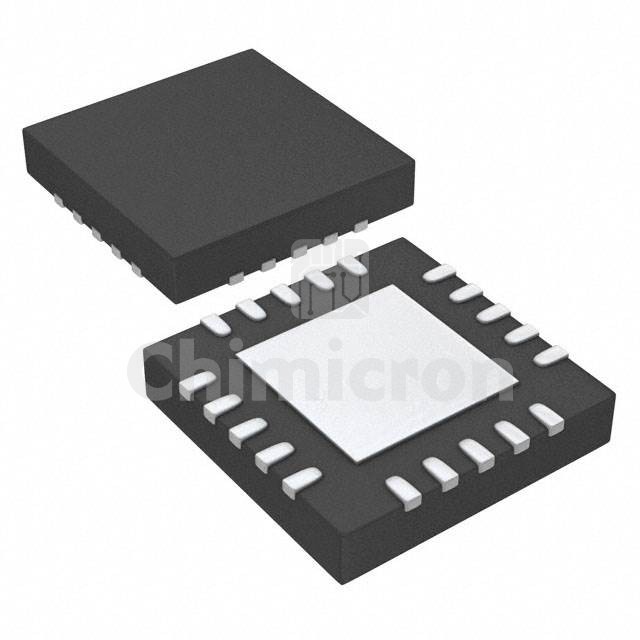

TPS2505B1RGWR
Manufacturer: Texas
Description: IC PWR SWITCH N/P-CH 1:3 20VQFN
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: -
In Stock:67464
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS2505B1RGWR Texas at chimicron.com. We have 67464 pieces of TPS2505B1RGWR in stock available now. Submit an inquiry for TPS2505B1RGWR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch TypeUSB Switch
Number of Outputs3
Ratio - Input:Output1:3
Output ConfigurationHigh Side or Low Side
Output TypeN/P-Channel
InterfaceLogic
Voltage - Load1.8V ~ 5.25V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)1.1A
Rds On (Typ)80mOhm (Max)
Input TypeNon-Inverting
FeaturesBoost Converter, Status Flag
Fault ProtectionCurrent Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package20-VQFN (5x5)
Package / Case20-VQFN Exposed Pad
