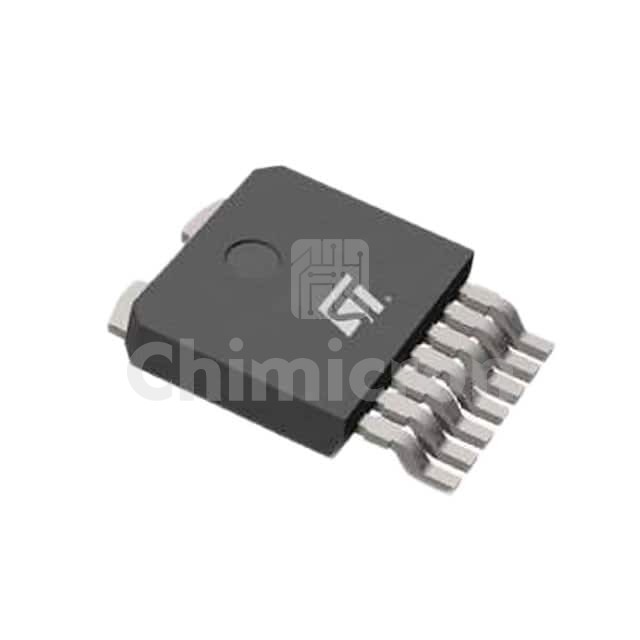

VN7004CHTR
Manufacturer: STMicroelectronics
Description: IC PWR SWITCH N-CHAN 1:1 OCTAPAK
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: Automotive, AEC-Q100
In Stock:25000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the VN7004CHTR STMicroelectronics at chimicron.com. We have 25000 pieces of VN7004CHTR in stock available now. Submit an inquiry for VN7004CHTR or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch TypeGeneral Purpose
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load4V ~ 28V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)80A
Rds On (Typ)4mOhm
Input TypeNon-Inverting
Features-
Fault ProtectionCurrent Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageOctaPAK 7+1
Package / CaseOctaPAK (7 leads + Tab)
