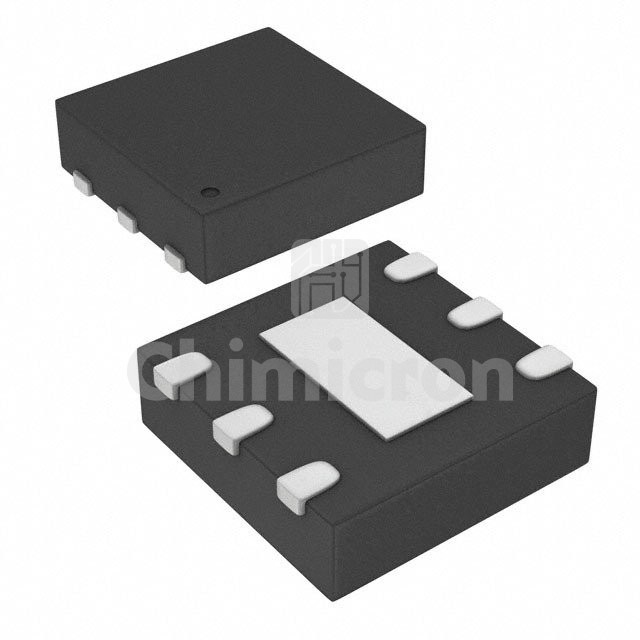

UCC27512DRSR
Manufacturer: Texas
Description: IC GATE DRVR LOW-SIDE 6SON
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:182990
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the UCC27512DRSR Texas at chimicron.com. We have 182990 pieces of UCC27512DRSR in stock available now. Submit an inquiry for UCC27512DRSR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Driven ConfigurationLow-Side
Channel TypeSingle
Number of Drivers1
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply4.5V ~ 18V
Logic Voltage - VIL, VIH1V, 2.4V
Current - Peak Output (Source, Sink)4A, 8A
Input TypeInverting, Non-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)8ns, 7ns
Operating Temperature-40°C ~ 140°C (TJ)
Mounting TypeSurface Mount
Package / Case6-WDFN Exposed Pad
Supplier Device Package6-SON-EP (3x3)
