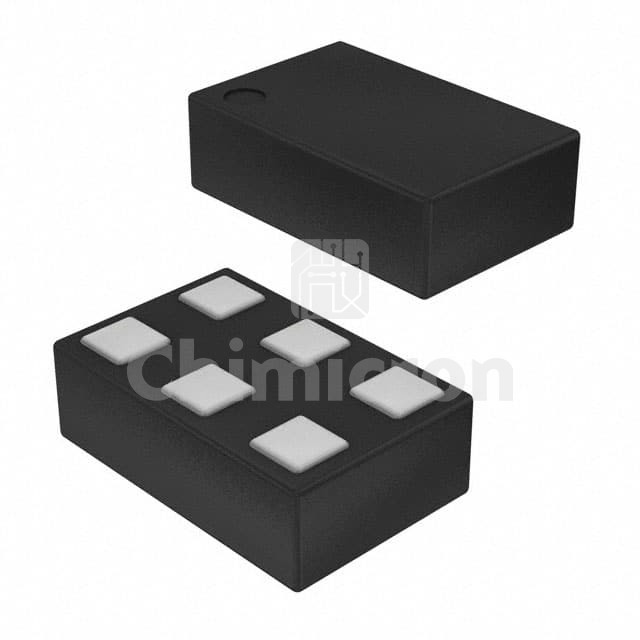

1EDN7550UXTSA1
Manufacturer: IR (Infineon Technologies)
Description: IC GATE DRVR HALF-BRIDGE TSNP-6
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: EiceDriver™
In Stock:5932
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 1EDN7550UXTSA1 IR (Infineon Technologies) at chimicron.com. We have 5932 pieces of 1EDN7550UXTSA1 in stock available now. Submit an inquiry for 1EDN7550UXTSA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesEiceDriver™
PackageTape & Reel (TR)
Part StatusActive
Driven ConfigurationHigh-Side
Channel TypeSingle
Number of Drivers1
Gate TypeN-Channel, P-Channel MOSFET
Voltage - Supply4.5V ~ 20V
Logic Voltage - VIL, VIH-
Current - Peak Output (Source, Sink)4A, 8A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)6.5ns, 4.5ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-XFDFN
Supplier Device PackagePG-TSNP-6-13
