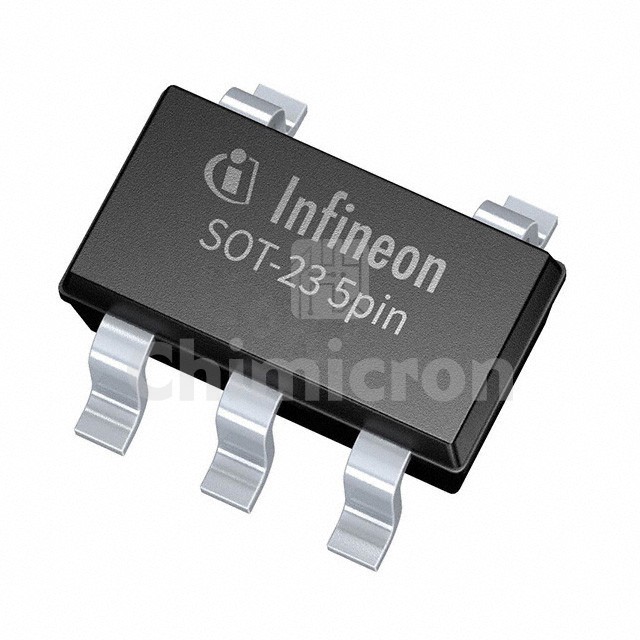

1EDN7512BXTSA1
Manufacturer: IR (Infineon Technologies)
Description: IC GATE DRVR LOW-SIDE SOT23-5
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: EiceDriver™
In Stock:10500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 1EDN7512BXTSA1 IR (Infineon Technologies) at chimicron.com. We have 10500 pieces of 1EDN7512BXTSA1 in stock available now. Submit an inquiry for 1EDN7512BXTSA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesEiceDriver™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Driven ConfigurationLow-Side
Channel TypeSingle
Number of Drivers1
Gate TypeN-Channel MOSFET
Voltage - Supply4.5V ~ 20V
Logic Voltage - VIL, VIH-
Current - Peak Output (Source, Sink)4A, 8A
Input TypeInverting, Non-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)6.5ns, 4.5ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-74A, SOT-753
Supplier Device PackagePG-SOT23-5-1
