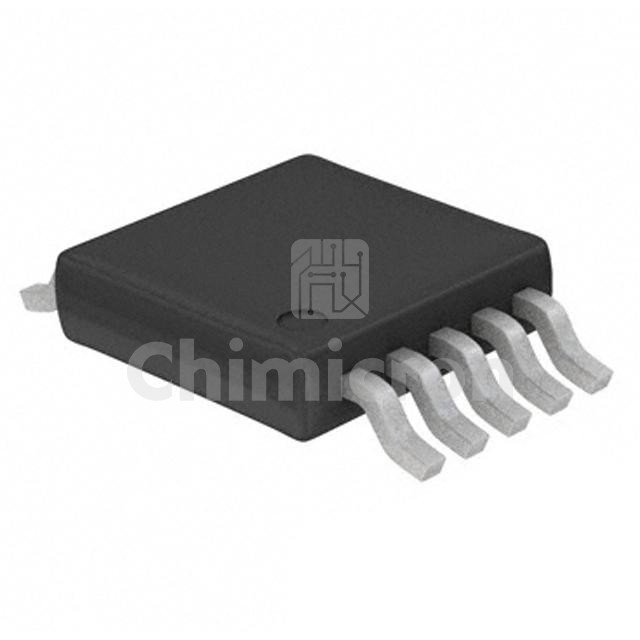

LM5060QDGSRQ1
Manufacturer: Texas
Description: IC GATE DRVR HIGH-SIDE 10VSSOP
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: Automotive, AEC-Q100
In Stock:70314
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LM5060QDGSRQ1 Texas at chimicron.com. We have 70314 pieces of LM5060QDGSRQ1 in stock available now. Submit an inquiry for LM5060QDGSRQ1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Driven ConfigurationHigh-Side
Channel TypeSingle
Number of Drivers1
Gate TypeN-Channel MOSFET
Voltage - Supply5.5V ~ 65V
Logic Voltage - VIL, VIH0.8V, 2V
Current - Peak Output (Source, Sink)24µA, 2.2mA
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)-
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package10-VSSOP
