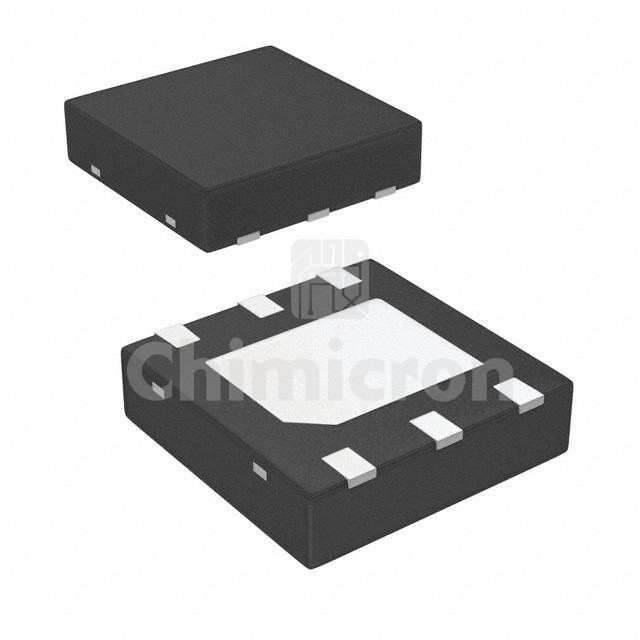

LM5112Q1SDX/NOPB
Manufacturer: Texas
Description: IC GATE DRVR LOW-SIDE 6WSON
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: Automotive, AEC-Q100
In Stock:80958
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LM5112Q1SDX/NOPB Texas at chimicron.com. We have 80958 pieces of LM5112Q1SDX/NOPB in stock available now. Submit an inquiry for LM5112Q1SDX/NOPB or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Driven ConfigurationLow-Side
Channel TypeSingle
Number of Drivers1
Gate TypeN-Channel MOSFET
Voltage - Supply3.5V ~ 14V
Logic Voltage - VIL, VIH0.8V, 2.3V
Current - Peak Output (Source, Sink)3A, 7A
Input TypeInverting, Non-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)14ns, 12ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case6-WDFN Exposed Pad
Supplier Device Package6-WSON (3x3)
