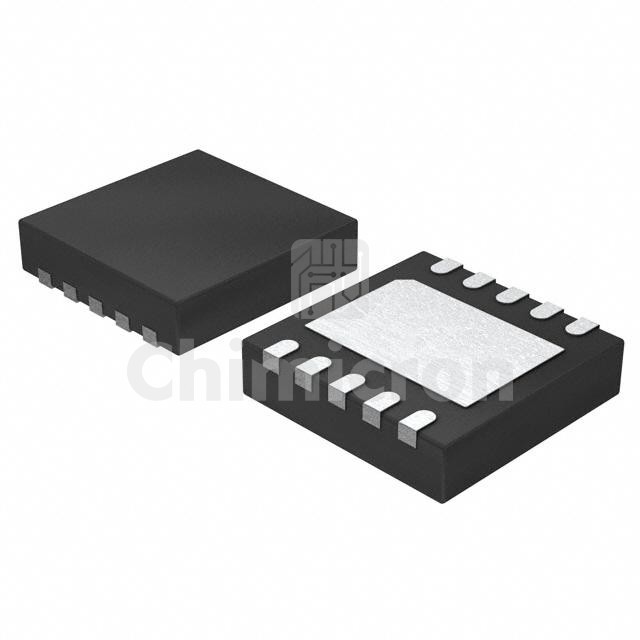

LM5106SDX/NOPB
Manufacturer: Texas
Description: IC GATE DRVR HALF-BRIDGE 10WSON
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:21000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LM5106SDX/NOPB Texas at chimicron.com. We have 21000 pieces of LM5106SDX/NOPB in stock available now. Submit an inquiry for LM5106SDX/NOPB or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply8V ~ 14V
Logic Voltage - VIL, VIH0.8V, 2.2V
Current - Peak Output (Source, Sink)1.2A, 1.8A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)118 V
Rise / Fall Time (Typ)15ns, 10ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case10-WDFN Exposed Pad
Supplier Device Package10-WSON (4x4)
