UCC27282QDRCRQ1
Manufacturer: Texas
Description: AUTOMOTIVE 3-A, 120-V HALF BRIDG
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: Automotive, AEC-Q100
In Stock:53127
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the UCC27282QDRCRQ1 Texas at chimicron.com. We have 53127 pieces of UCC27282QDRCRQ1 in stock available now. Submit an inquiry for UCC27282QDRCRQ1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply5.5V ~ 16V
Logic Voltage - VIL, VIH1.3V, 1.9V
Current - Peak Output (Source, Sink)2.5A, 3.5A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)12ns, 10ns
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount

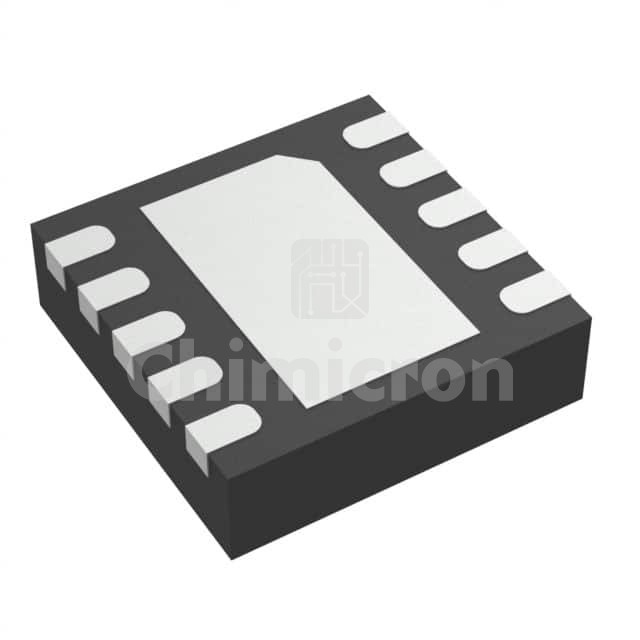

Package / Case10-VFDFN Exposed Pad
Supplier Device Package10-VSON (3x3)
