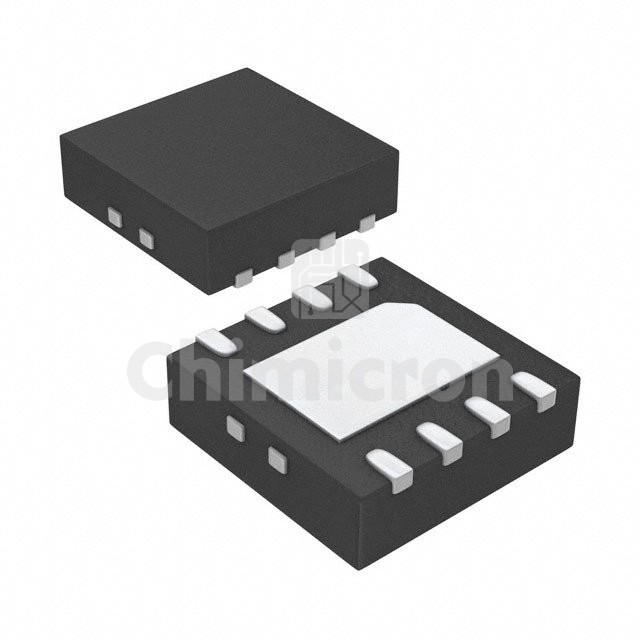

TC4424AVMF
Manufacturer: Roving Networks / Microchip Technology
Description: IC GATE DRVR LOW-SIDE 8DFN
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:54600
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TC4424AVMF Roving Networks / Microchip Technology at chimicron.com. We have 54600 pieces of TC4424AVMF in stock available now. Submit an inquiry for TC4424AVMF or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Driven ConfigurationLow-Side
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel, P-Channel MOSFET
Voltage - Supply4.5V ~ 18V
Logic Voltage - VIL, VIH0.8V, 2.4V
Current - Peak Output (Source, Sink)4.5A, 4.5A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)12ns, 12ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-VDFN Exposed Pad
Supplier Device Package8-DFN-S (6x5)
