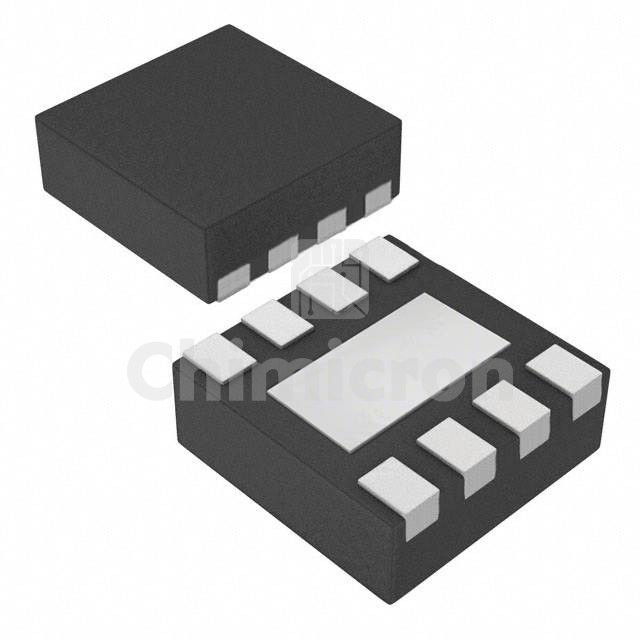

LM5109BQNGTTQ1
Manufacturer: Texas
Description: IC GATE DRVR HALF-BRIDGE 8WSON
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: Automotive, AEC-Q100
In Stock:8000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LM5109BQNGTTQ1 Texas at chimicron.com. We have 8000 pieces of LM5109BQNGTTQ1 in stock available now. Submit an inquiry for LM5109BQNGTTQ1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply8V ~ 14V
Logic Voltage - VIL, VIH0.8V, 2.2V
Current - Peak Output (Source, Sink)1A, 1A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)108 V
Rise / Fall Time (Typ)15ns, 15ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case8-WFDFN Exposed Pad
Supplier Device Package8-WSON (4x4)
