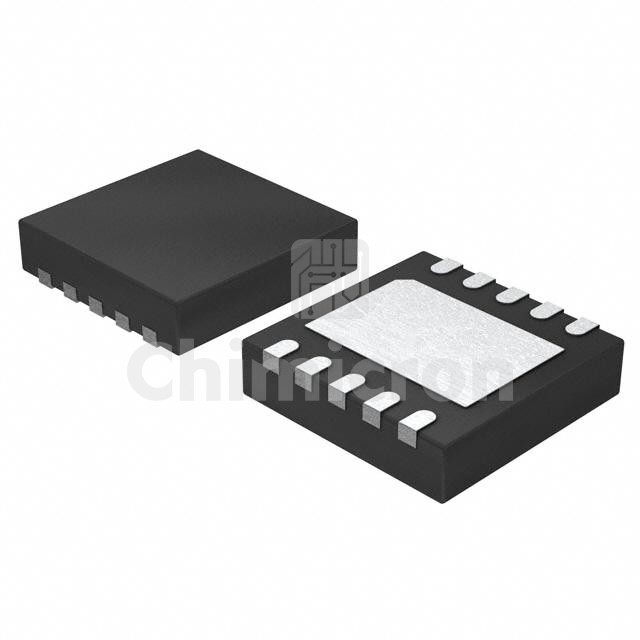

LM5101ASD/NOPB
Manufacturer: Texas
Description: IC GATE DRVR HALF-BRIDGE 10WSON
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:12285
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LM5101ASD/NOPB Texas at chimicron.com. We have 12285 pieces of LM5101ASD/NOPB in stock available now. Submit an inquiry for LM5101ASD/NOPB or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply9V ~ 14V
Logic Voltage - VIL, VIH2.3V, -
Current - Peak Output (Source, Sink)3A, 3A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)118 V
Rise / Fall Time (Typ)430ns, 260ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case10-WDFN Exposed Pad
Supplier Device Package10-WSON (4x4)
