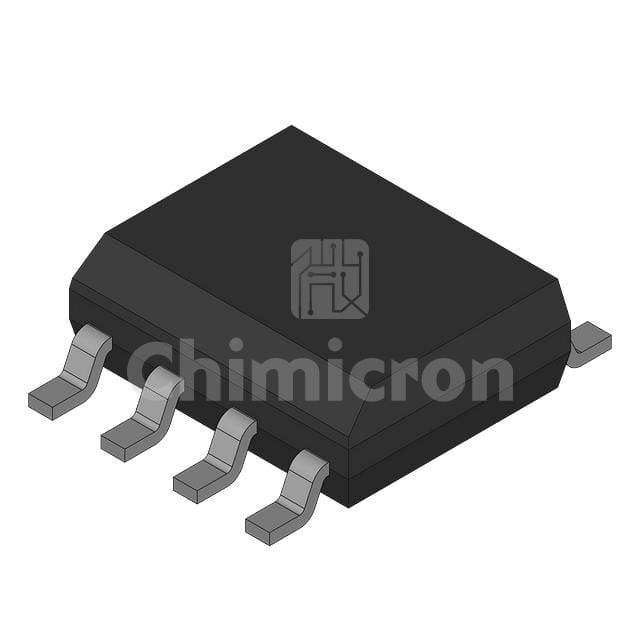

IRS2301STRPBF
Manufacturer: IR (Infineon Technologies)
Description: IC GATE DRVR HALF-BRIDGE 8SOIC
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:16500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRS2301STRPBF IR (Infineon Technologies) at chimicron.com. We have 16500 pieces of IRS2301STRPBF in stock available now. Submit an inquiry for IRS2301STRPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply5V ~ 20V
Logic Voltage - VIL, VIH0.8V, 2.5V
Current - Peak Output (Source, Sink)200mA, 350mA
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)130ns, 50ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
