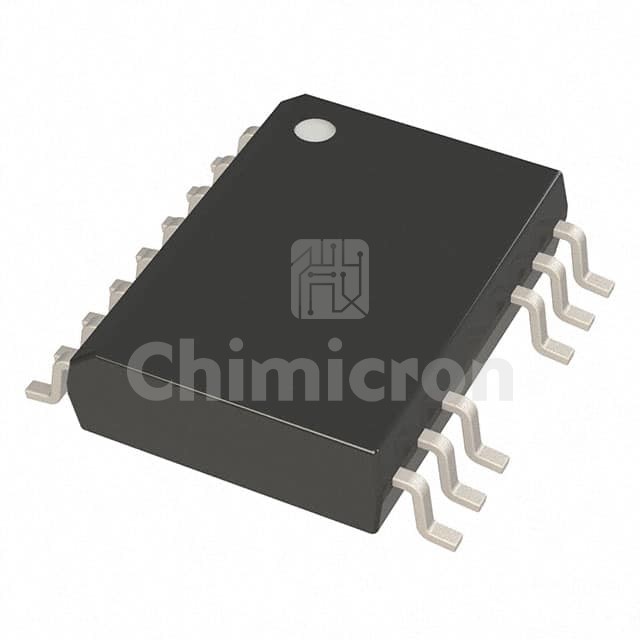

UCC21530DWKR
Manufacturer: Texas
Description: IC GATE DRVR ISOLATED
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:15458
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the UCC21530DWKR Texas at chimicron.com. We have 15458 pieces of UCC21530DWKR in stock available now. Submit an inquiry for UCC21530DWKR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT, N-Channel, P-Channel MOSFET
Voltage - Supply3V ~ 18V
Logic Voltage - VIL, VIH1.2V, 1.6V
Current - Peak Output (Source, Sink)4A, 6A
Input TypeCMOS/TTL
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)6ns, 7ns
Operating Temperature-40°C ~ 130°C (TJ)
Mounting TypeSurface Mount
Package / Case14-SOIC (0.295", 7.50mm Width)
Supplier Device Package14-SOIC
