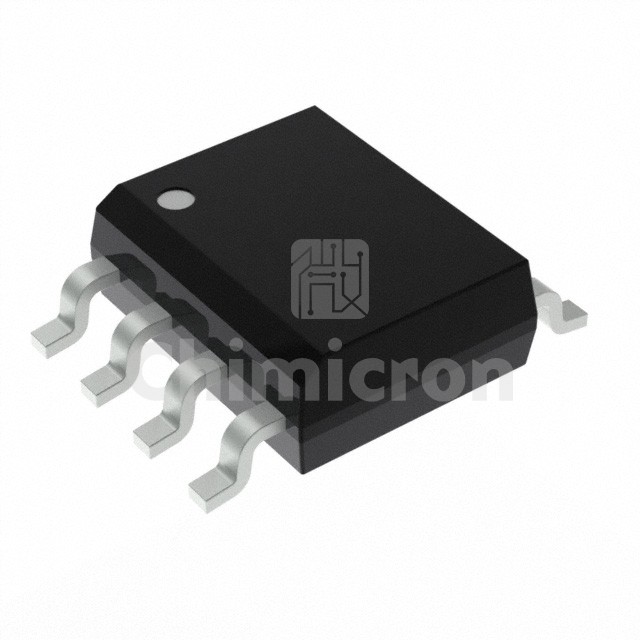

DGD2181MS8-13
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: IC GATE DRVR HALF-BRIDGE 8SO
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:20990
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DGD2181MS8-13 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 20990 pieces of DGD2181MS8-13 in stock available now. Submit an inquiry for DGD2181MS8-13 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply10V ~ 20V
Logic Voltage - VIL, VIH0.8V, 2.5V
Current - Peak Output (Source, Sink)1.9A, 2.3A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)40ns, 20ns
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SO Type TH
