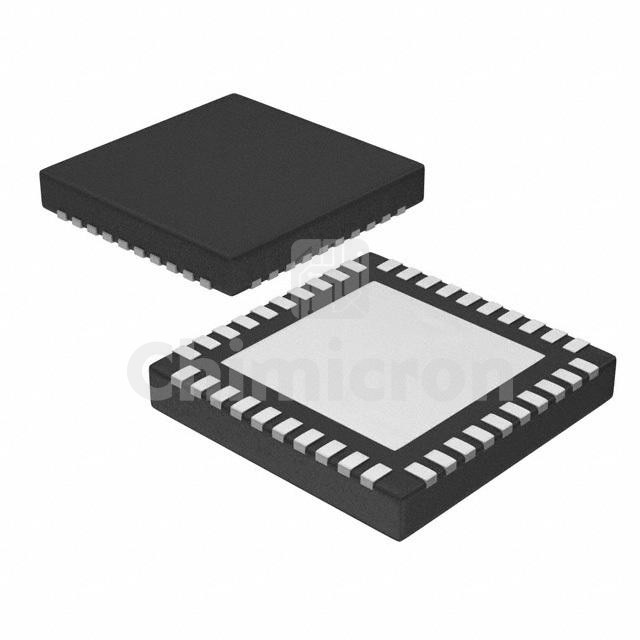

DRV8304HRHAR
Manufacturer: Texas
Description: IC GATE DRVR HI/LOW SIDE 40VQFN
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:7000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DRV8304HRHAR Texas at chimicron.com. We have 7000 pieces of DRV8304HRHAR in stock available now. Submit an inquiry for DRV8304HRHAR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Driven ConfigurationHigh-Side or Low-Side
Channel Type3-Phase
Number of Drivers3
Gate TypeN-Channel MOSFET
Voltage - Supply6V ~ 38V
Logic Voltage - VIL, VIH0.8V, 1.5V
Current - Peak Output (Source, Sink)150mA, 300mA
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)300ns, 150ns
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case40-VFQFN Exposed Pad
Supplier Device Package40-VQFN (6x6)
