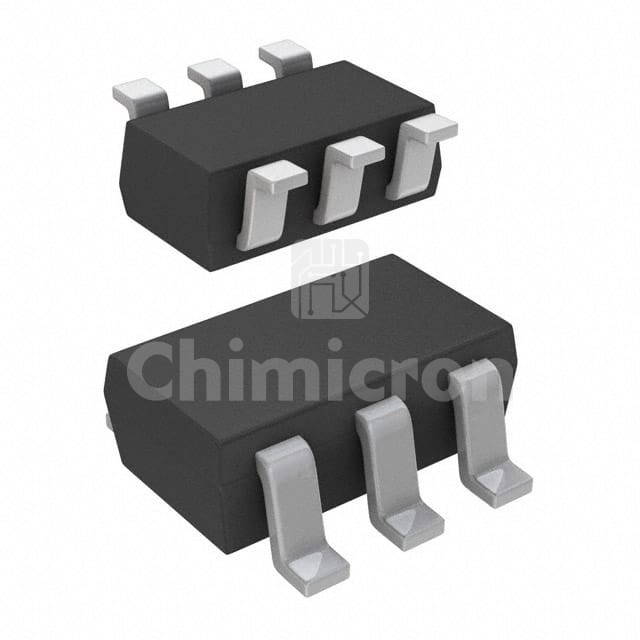

UCC27511AQDBVRQ1
Manufacturer: Texas
Description: IC GATE DRVR LOW-SIDE SOT23-6
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: Automotive, AEC-Q100
In Stock:5495
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the UCC27511AQDBVRQ1 Texas at chimicron.com. We have 5495 pieces of UCC27511AQDBVRQ1 in stock available now. Submit an inquiry for UCC27511AQDBVRQ1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Driven ConfigurationLow-Side
Channel TypeSingle
Number of Drivers1
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply4.5V ~ 18V
Logic Voltage - VIL, VIH1V, 2.4V
Current - Peak Output (Source, Sink)4A, 8A
Input TypeInverting, Non-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)8ns, 7ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-23-6
Supplier Device PackageSOT-23-6
