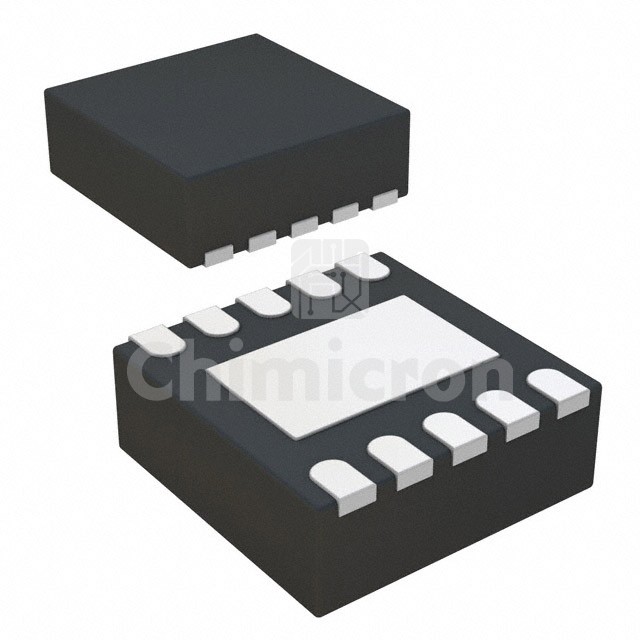

CHL8510CRT
Manufacturer: IR (Infineon Technologies)
Description: IC GATE DRVR HALF-BRIDGE 10DFN
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:213752
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CHL8510CRT IR (Infineon Technologies) at chimicron.com. We have 213752 pieces of CHL8510CRT in stock available now. Submit an inquiry for CHL8510CRT or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply10.8V ~ 13.2V
Logic Voltage - VIL, VIH0.8V, 1V
Current - Peak Output (Source, Sink)3A, 4A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)35 V
Rise / Fall Time (Typ)21ns, 18ns
Operating Temperature0°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case10-VFDFN Exposed Pad
Supplier Device Package10-DFN (3x3)
