LM5113QDPRRQ1
Manufacturer: Texas
Description: IC GATE DRVR HALF-BRIDGE 10WSON
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: Automotive, AEC-Q100
In Stock:3465
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LM5113QDPRRQ1 Texas at chimicron.com. We have 3465 pieces of LM5113QDPRRQ1 in stock available now. Submit an inquiry for LM5113QDPRRQ1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply4.5V ~ 5.5V
Logic Voltage - VIL, VIH-
Current - Peak Output (Source, Sink)1.2A, 5A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)100 V
Rise / Fall Time (Typ)7ns, 3.5ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount

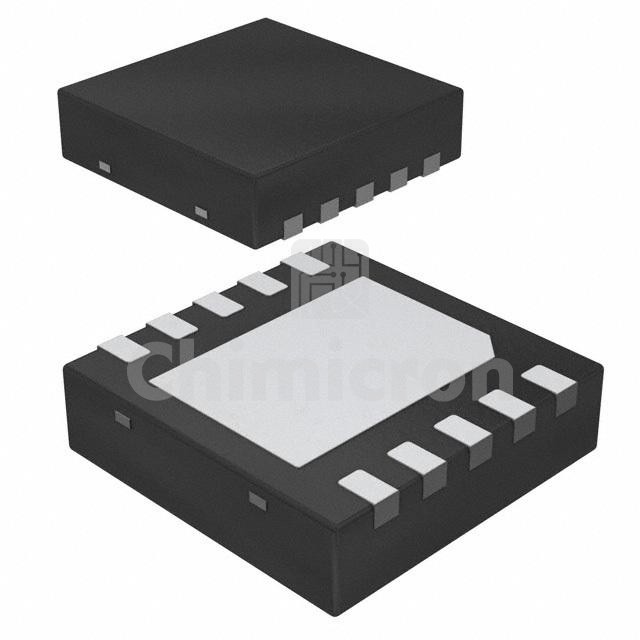

Package / Case10-WDFN Exposed Pad
Supplier Device Package10-WSON (4x4)
