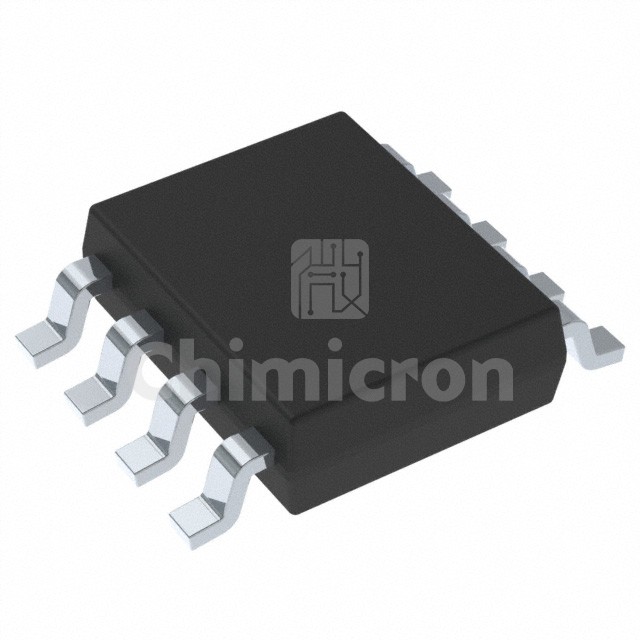

UCC27211AQDDARQ1
Manufacturer: Texas
Description: IC GATE DRVR HALF-BRIDGE 8SOPWR
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: Automotive, AEC-Q100
In Stock:250000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the UCC27211AQDDARQ1 Texas at chimicron.com. We have 250000 pieces of UCC27211AQDDARQ1 in stock available now. Submit an inquiry for UCC27211AQDDARQ1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply8V ~ 17V
Logic Voltage - VIL, VIH1.2V, 2.55V
Current - Peak Output (Source, Sink)4A, 4A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)120 V
Rise / Fall Time (Typ)7.2ns, 5.5ns
Operating Temperature-40°C ~ 140°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package8-SO PowerPad
