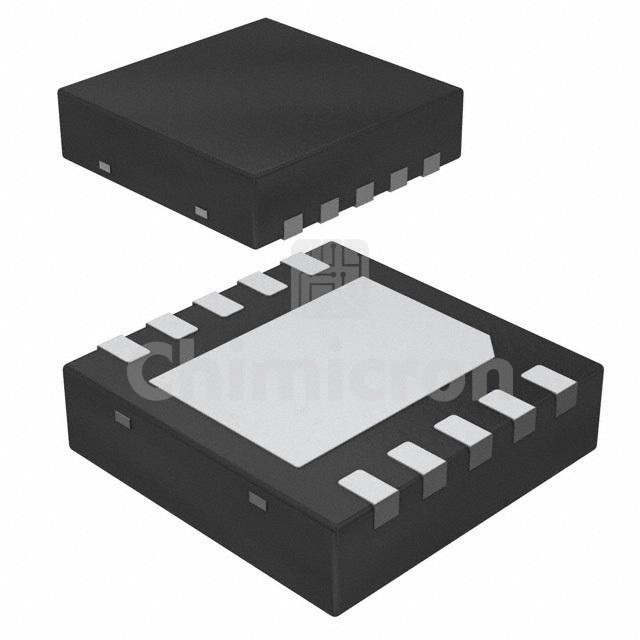

TPS54561QDPRTQ1
Manufacturer: Texas
Description: IC REG BCK SPLIT RAIL ADJ 10WSON
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Regulators
Series: Automotive, AEC-Q100, Eco-Mode™
In Stock:10500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS54561QDPRTQ1 Texas at chimicron.com. We have 10500 pieces of TPS54561QDPRTQ1 in stock available now. Submit an inquiry for TPS54561QDPRTQ1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100, Eco-Mode™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Output TypeAdjustable
Number of Outputs1
Voltage - Input (Min)4.5V
Voltage - Input (Max)60V
Voltage - Output (Min/Fixed)0.8V
Voltage - Output (Max)58.8V
Current - Output5A
Frequency - Switching100kHz ~ 2.5MHz
Synchronous RectifierNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case10-WDFN Exposed Pad
Supplier Device Package10-WSON (3x3)
