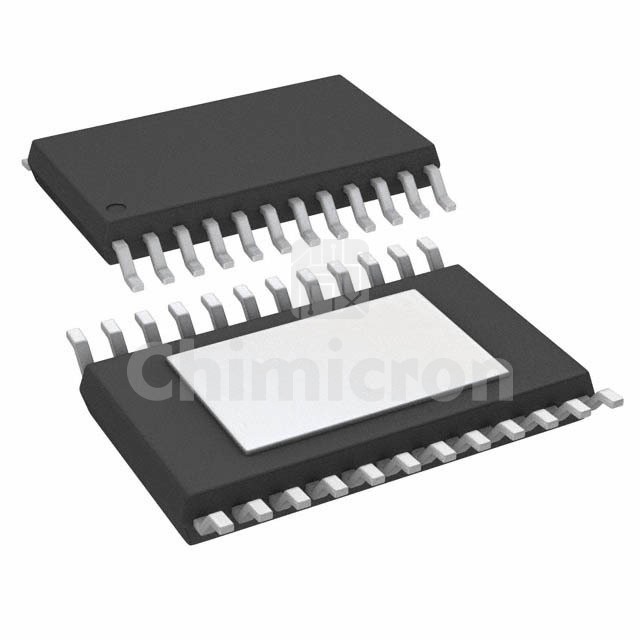

TPS56C20PWPR
TPS56C20PWPR

Manufacturer: Texas

Description: IC REG BCK ADJ/PROG 12A 24HTSSOP
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Regulators
Series: SWIFT™, D-CAP2™, Eco-Mode™
In Stock:38319
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS56C20PWPR Texas at chimicron.com. We have 38319 pieces of TPS56C20PWPR in stock available now. Submit an inquiry for TPS56C20PWPR or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSWIFT™, D-CAP2™, Eco-Mode™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Output TypeAdjustable (Programmable)
Number of Outputs1
Voltage - Input (Min)4.5V
Voltage - Input (Max)17V
Voltage - Output (Min/Fixed)0.6V
Voltage - Output (Max)1.87V
Current - Output12A
Frequency - Switching500kHz
Synchronous RectifierYes
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case24-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package24-HTSSOP
