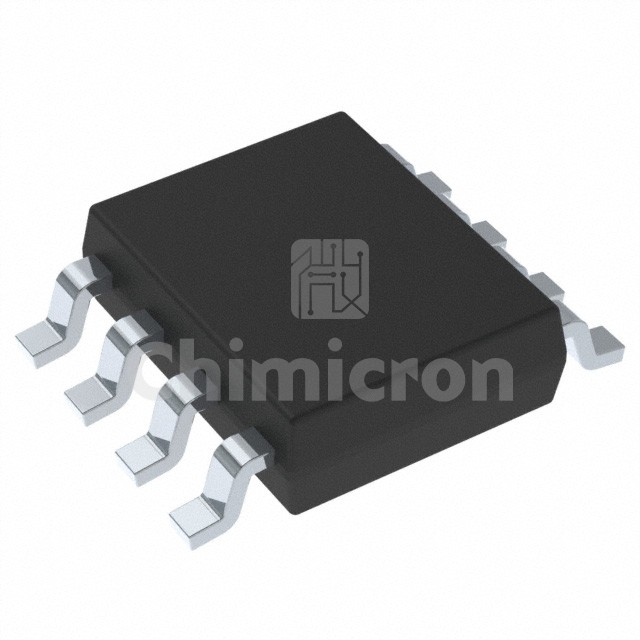

TPS54560BDDAR
Manufacturer: Texas
Description: IC REG CTRLR
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Regulators
Series: Eco-Mode™
In Stock:21000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS54560BDDAR Texas at chimicron.com. We have 21000 pieces of TPS54560BDDAR in stock available now. Submit an inquiry for TPS54560BDDAR or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesEco-Mode™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck, Split Rail
Output TypeAdjustable
Number of Outputs1
Voltage - Input (Min)4.5V
Voltage - Input (Max)60V
Voltage - Output (Min/Fixed)0.8V
Voltage - Output (Max)58.8V
Current - Output5A
Frequency - Switching500kHz
Synchronous RectifierNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package8-SO PowerPad
