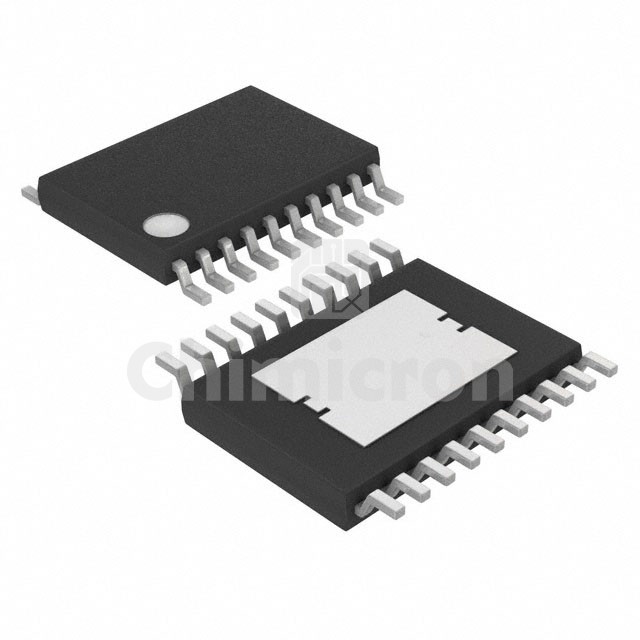

ADP5070AREZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC REG BST SEPIC ADJ DL 20TSSOP
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Regulators
Series: -
In Stock:13523
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADP5070AREZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 13523 pieces of ADP5070AREZ in stock available now. Submit an inquiry for ADP5070AREZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
FunctionStep-Up, Step-Up/Step-Down
Output ConfigurationPositive and Negative (Dual Rail)
TopologyBoost, SEPIC
Output TypeAdjustable
Number of Outputs2
Voltage - Input (Min)2.85V
Voltage - Input (Max)15V
Voltage - Output (Min/Fixed)0.8V, 1.6V
Voltage - Output (Max)±39V
Current - Output600mA, 1A
Frequency - Switching1.2MHz, 2.4MHz
Synchronous RectifierNo
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package20-TSSOP-EP
