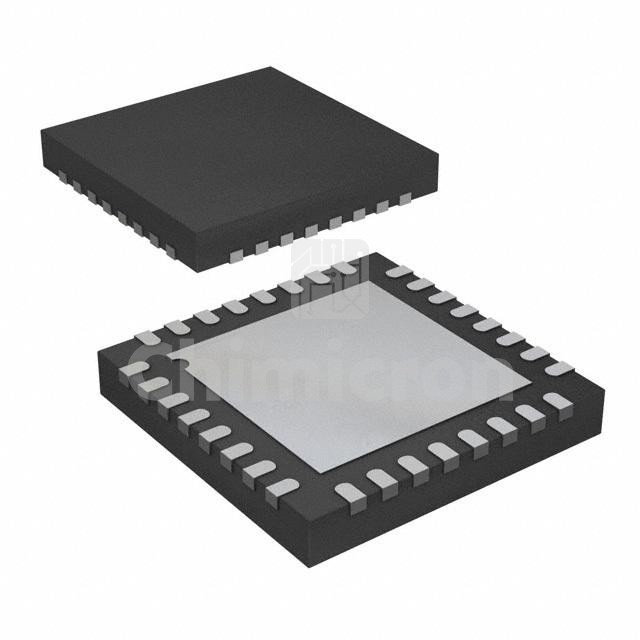

ADP2114ACPZ-R7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC REG BCK ADJ/PRG SGL/DL 32CSP
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Regulators
Series: -
In Stock:5775
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADP2114ACPZ-R7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 5775 pieces of ADP2114ACPZ-R7 in stock available now. Submit an inquiry for ADP2114ACPZ-R7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Output TypeAdjustable (Programmable)
Number of Outputs1 or 2
Voltage - Input (Min)2.75V
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)0.6V (0.8V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V)
Voltage - Output (Max)5.5V
Current - Output4A, 2A
Frequency - Switching300kHz, 600kHz, 1.2MHz
Synchronous RectifierYes
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case32-WFQFN Exposed Pad, CSP
Supplier Device Package32-LFCSP-WQ (5x5)
