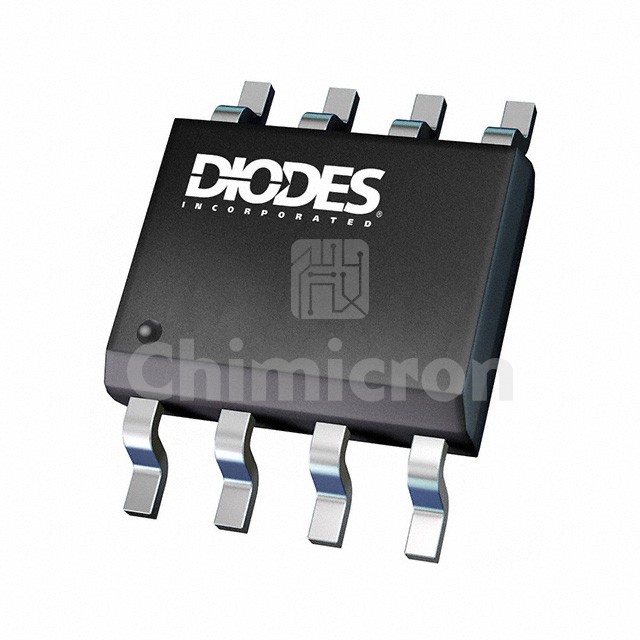

AP6503SP-13
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: IC REG BUCK ADJUSTABLE 3A 8SO
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Regulators
Series: -
In Stock:19425
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AP6503SP-13 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 19425 pieces of AP6503SP-13 in stock available now. Submit an inquiry for AP6503SP-13 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Output TypeAdjustable
Number of Outputs1
Voltage - Input (Min)4.7V
Voltage - Input (Max)23V
Voltage - Output (Min/Fixed)0.925V
Voltage - Output (Max)20V
Current - Output3A
Frequency - Switching340kHz
Synchronous RectifierYes
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package8-SO-EP
