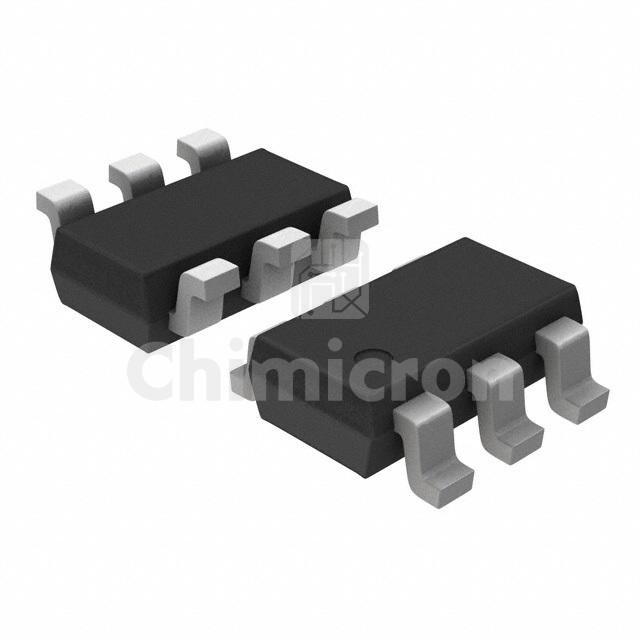

TPS563209DDCR
Manufacturer: Texas
Description: IC REG BUCK ADJ 3A TSOT23-6
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Regulators
Series: D-CAP2™
In Stock:14700
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS563209DDCR Texas at chimicron.com. We have 14700 pieces of TPS563209DDCR in stock available now. Submit an inquiry for TPS563209DDCR or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesD-CAP2™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Output TypeAdjustable
Number of Outputs1
Voltage - Input (Min)4.5V
Voltage - Input (Max)17V
Voltage - Output (Min/Fixed)0.76V
Voltage - Output (Max)7V
Current - Output3A
Frequency - Switching650kHz
Synchronous RectifierYes
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / CaseSOT-23-6 Thin, TSOT-23-6
Supplier Device PackageTSOT-23-6
