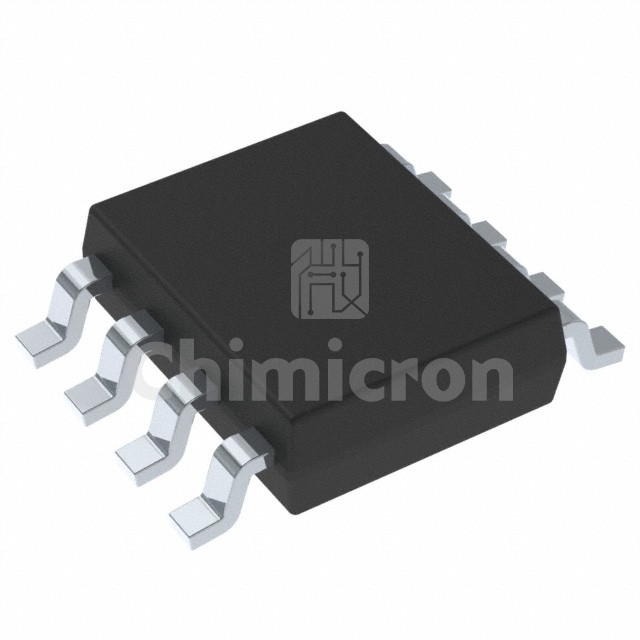

TPS54560DDA
TPS54560DDA

Manufacturer: Texas

Description: IC REG BCK SPLIT RAIL ADJ 8SOPWR
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Regulators
Series: Eco-Mode™
In Stock:19000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS54560DDA Texas at chimicron.com. We have 19000 pieces of TPS54560DDA in stock available now. Submit an inquiry for TPS54560DDA or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesEco-Mode™
PackageTube
Part StatusNot For New Designs
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck, Split Rail
Output TypeAdjustable
Number of Outputs1
Voltage - Input (Min)4.5V
Voltage - Input (Max)60V
Voltage - Output (Min/Fixed)0.8V
Voltage - Output (Max)58.8V
Current - Output5A
Frequency - Switching100kHz ~ 2.5MHz
Synchronous RectifierNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package8-SO PowerPad
