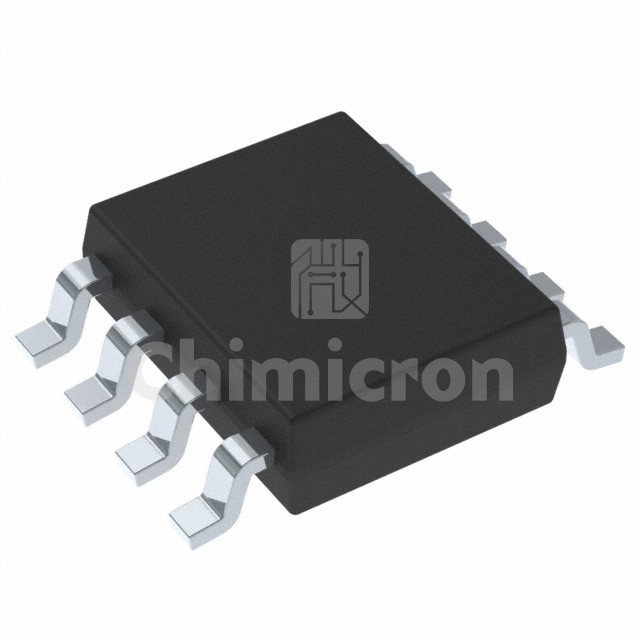

TPS54560DDAR
TPS54560DDAR

Manufacturer: Rochester Electronics

Description: TPS54560 4.5V TO 60 V INPUT, 5 A
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Regulators
Series: Eco-Mode™
In Stock:2646
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS54560DDAR Rochester Electronics at chimicron.com. We have 2646 pieces of TPS54560DDAR in stock available now. Submit an inquiry for TPS54560DDAR or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesEco-Mode™
PackageBulk
Part StatusActive
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck, Split Rail
Output TypeAdjustable
Number of Outputs1
Voltage - Input (Min)4.5V
Voltage - Input (Max)60V
Voltage - Output (Min/Fixed)0.8V
Voltage - Output (Max)58.8V
Current - Output5A
Frequency - Switching100kHz ~ 2.5MHz
Synchronous RectifierNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package8-SO PowerPad
