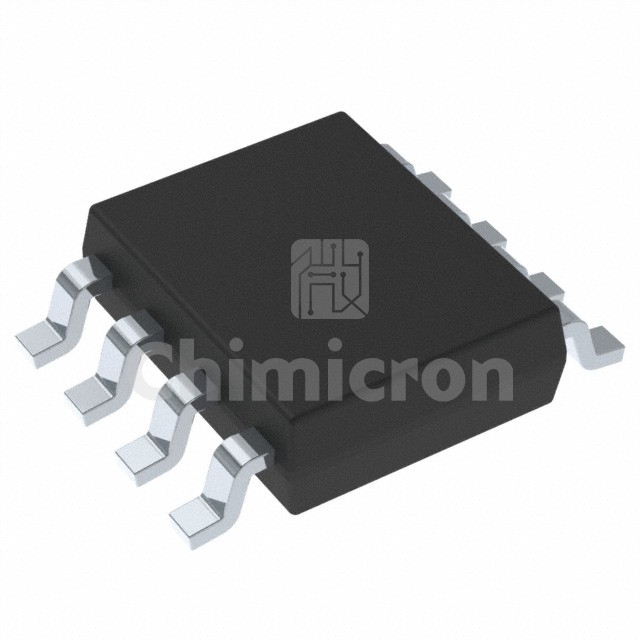

TPS54560QDDAQ1
Manufacturer: Texas
Description: IC REG BCK SPLIT RAIL ADJ 8SOPWR
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Regulators
Series: Automotive, AEC-Q100, Eco-Mode™
In Stock:1000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS54560QDDAQ1 Texas at chimicron.com. We have 1000 pieces of TPS54560QDDAQ1 in stock available now. Submit an inquiry for TPS54560QDDAQ1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100, Eco-Mode™
PackageTube
Part StatusNot For New Designs
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck, Split Rail
Output TypeAdjustable
Number of Outputs1
Voltage - Input (Min)4.5V
Voltage - Input (Max)60V
Voltage - Output (Min/Fixed)0.8V
Voltage - Output (Max)58.8V
Current - Output5A
Frequency - Switching100kHz ~ 2.5MHz
Synchronous RectifierNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package8-SO PowerPad
