TPS56C215RNNR
Manufacturer: Texas
Description: IC REG BUCK ADJ 12A 18VQFN
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Regulators
Series: SWIFT™, D-CAP2™, Eco-Mode™
In Stock:51450
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS56C215RNNR Texas at chimicron.com. We have 51450 pieces of TPS56C215RNNR in stock available now. Submit an inquiry for TPS56C215RNNR or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSWIFT™, D-CAP2™, Eco-Mode™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Output TypeAdjustable
Number of Outputs1
Voltage - Input (Min)4.5V
Voltage - Input (Max)17V
Voltage - Output (Min/Fixed)0.6V
Voltage - Output (Max)5.5V
Current - Output12A
Frequency - Switching400kHz, 800kHz, 1.2MHz
Synchronous RectifierYes
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount

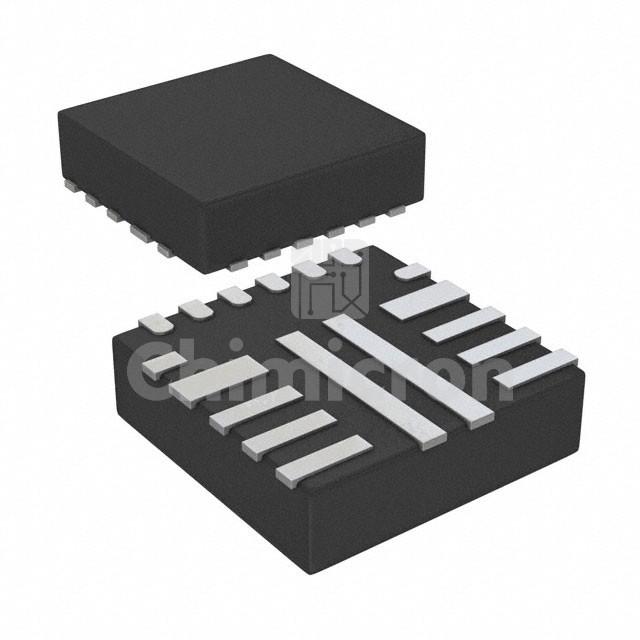

Package / Case18-VFQFN
Supplier Device Package18-VQFN-HR (3.5x3.5)
