ADP5071ACPZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC REG BST SEPIC ADJ DL 20LFCSP
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Regulators
Series: -
In Stock:40000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADP5071ACPZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 40000 pieces of ADP5071ACPZ in stock available now. Submit an inquiry for ADP5071ACPZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTray
Part StatusActive
FunctionStep-Up, Step-Up/Step-Down
Output ConfigurationPositive and Negative (Dual Rail)
TopologyBoost, SEPIC
Output TypeAdjustable
Number of Outputs2
Voltage - Input (Min)2.85V
Voltage - Input (Max)15V
Voltage - Output (Min/Fixed)0.8V, 1.6V
Voltage - Output (Max)±39V
Current - Output1.2A, 2A
Frequency - Switching1.2MHz, 2.4MHz
Synchronous RectifierNo
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount

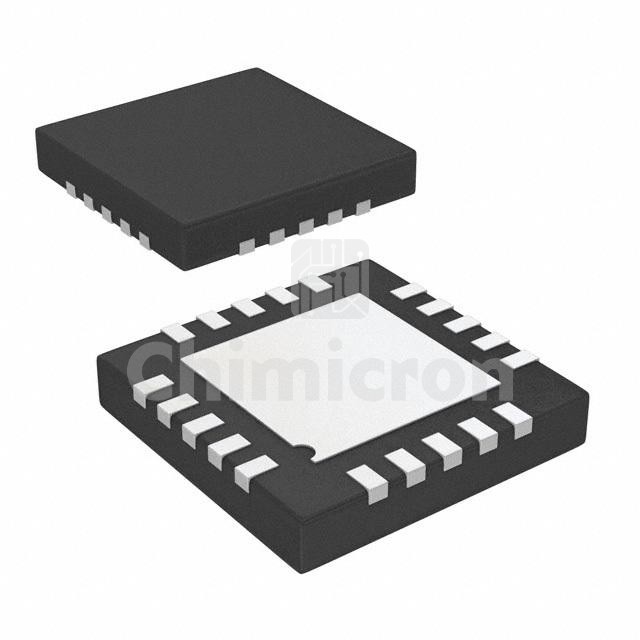

Package / Case20-WFQFN Exposed Pad, CSP
Supplier Device Package20-LFCSP-WQ (4x4)
