LM2696MXA
Manufacturer: Rochester Electronics
Description: LM2696 3A, CONSTANT ON TIME BUCK
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Regulators
Series: -
In Stock:387000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LM2696MXA Rochester Electronics at chimicron.com. We have 387000 pieces of LM2696MXA in stock available now. Submit an inquiry for LM2696MXA or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBulk
Part StatusObsolete
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Output TypeAdjustable
Number of Outputs1
Voltage - Input (Min)4.5V
Voltage - Input (Max)24V
Voltage - Output (Min/Fixed)1.254V
Voltage - Output (Max)20V
Current - Output3A
Frequency - Switching100kHz ~ 500kHz
Synchronous RectifierNo
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount

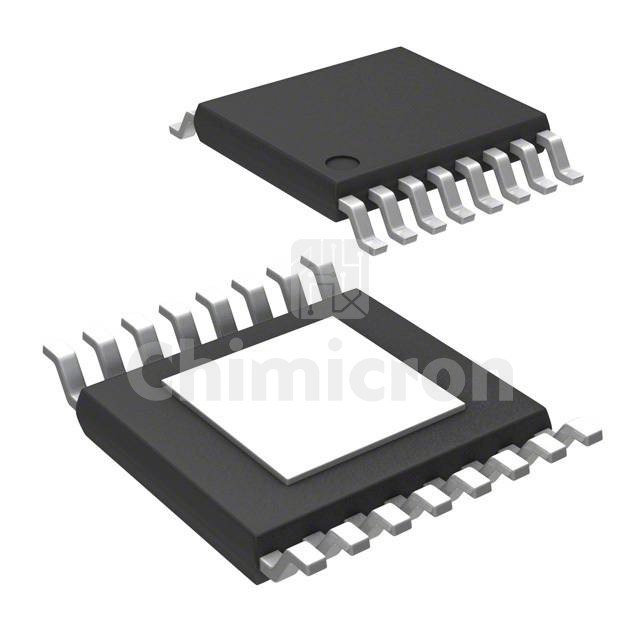

Package / Case16-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package16-HTSSOP
