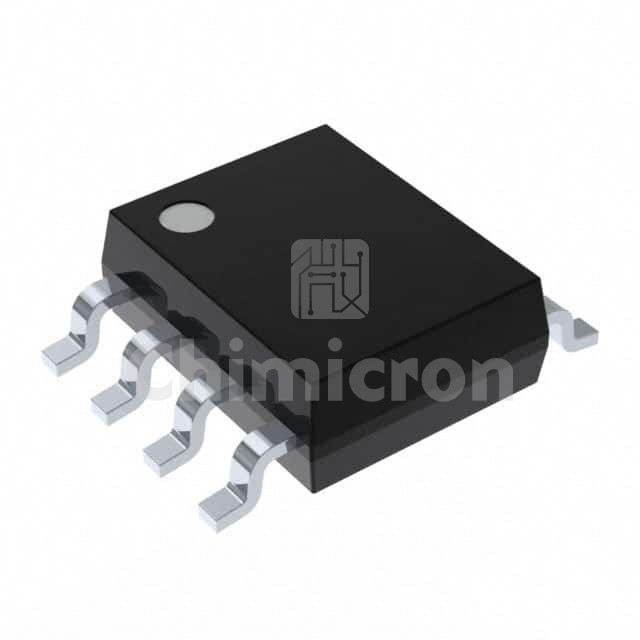

MAX1680ESA+T
Manufacturer: Maxim Integrated
Description: IC REG CHARGE PUMP INV 8SOIC
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Regulators
Series: -
In Stock:70000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MAX1680ESA+T Maxim Integrated at chimicron.com. We have 70000 pieces of MAX1680ESA+T in stock available now. Submit an inquiry for MAX1680ESA+T or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FunctionRatiometric
Output ConfigurationPositive or Negative
TopologyCharge Pump
Output TypeFixed
Number of Outputs1
Voltage - Input (Min)2V
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)-Vin, 2Vin
Voltage - Output (Max)-
Current - Output125mA
Frequency - Switching125kHz, 250kHz
Synchronous RectifierNo
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
